I. Product Overview

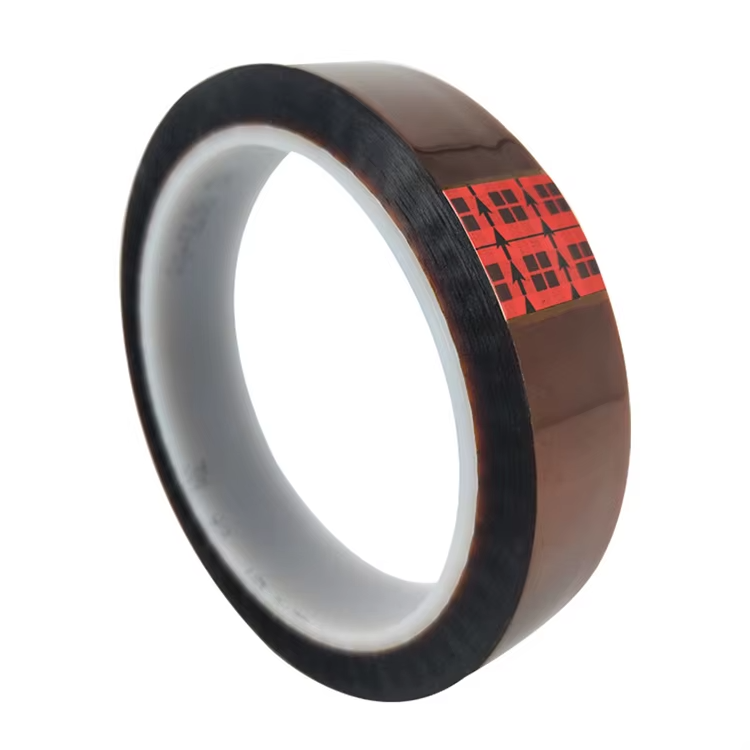

3M 92# is a professional-grade tape designed for high-voltage circuit insulation, featuring a polyimide (PI) film substrate and high-temperature-resistant silicone adhesive. With 7500V dielectric strength and wide-temperature stability (-40℃~180℃), it is ideal for demanding applications such as PCB wave soldering masking and motor coil wrapping. Certified by UL and compliant with RoHS standards.
Contact us for expert adhesive solutions!
II. Key Performance Parameters
| Parameter | Technical Specification | Customer Value |
|---|---|---|
| Dielectric Strength | 7500 V (0.025mm thickness) | Prevents high-voltage breakdown |
| Insulation Resistance | 1×10⁶ MΩ | Long-term leakage protection |
| Temperature Range | -40℃~180℃ | Stable in extreme environments |
| Thickness | 0.025mm (1mil) | Ultra-thin, space-saving |
| Flammability Rating | UL 94 V-0 | Eliminates fire risks |
| Standard Widths | 6mm/10mm/15mm/19mm/25mm (customizable) | Fits various wire diameters |
III. Key Advantages
✅ High-Voltage Insulation: 7500V dielectric strength, far exceeding standard PVC tape (3000V), effectively prevents circuit breakdown.
✅ Heat & Cold Resistance: No melting at 180°C, no cracking at -40°C, suitable for outdoor/industrial environments.
✅ Precision Conformability: 0.025mm ultra-thin substrate + high elongation (40%) for tight wrapping on irregular surfaces.
✅ Safety Certified: UL and RoHS compliant, meeting automotive/industrial equipment safety standards.
IV. Typical Applications
